Signals in the real world tend to be analog. For example the water level in a tank or the speed of car as measured by a tacho-generator. In order to process them with a digital circuit, we need to convert them to digital signals. Conversely, once the digital signals are processed, they must often be converted back to an analog signal.

An example would be processing an audio signal digitally and sending it to a speaker. The speaker requires digital signaling methods binary to text analog signal.

An Analog to Digital Converter ADC takes an analog input signal and converts the input, through a mathematical function, into a digital output signal. While there are many ways of implementing an ADC, there are three conceptual steps that occur. By sampling we turn a continuous-time function which may take on infinitely many values at different times into a discretised function that may take on infinitely many values at different discrete indices.

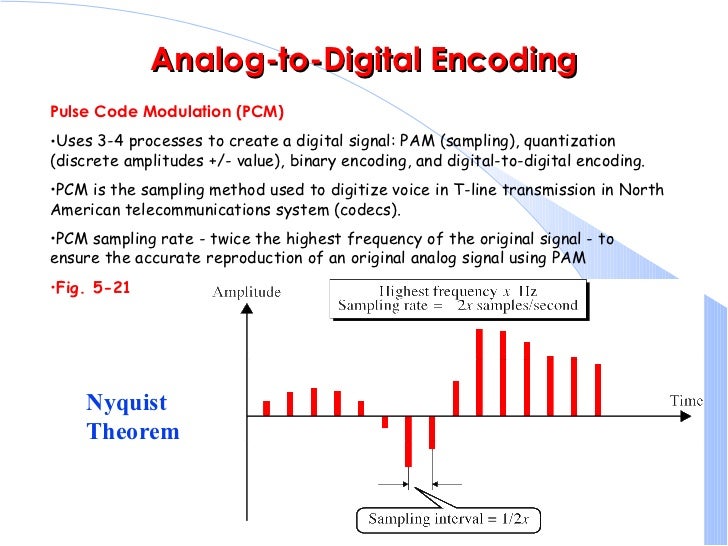

Sampling generally is done with a Sample-And-Hold circuit simple experiments can be done using a capacitor and switch. To be able to reconstruct the signal we must consider the Sampling Theorem which says that a sampling frequency twice the highest frequency we're expecting is needed.

In a simple way sampling can be defined as the process of taking samples from the continuous time function x t and for the signal to reconstruct we must consider the sampling theorem which states that the sampling frequency must be always greater than or equal than the highest frequency. Quantization is the process of taking a continuous voltage signal and mapping it to a discrete number of voltage levels. The number of voltage levels affects the quantization noise that occurs. Since digital computers are binary in nature, the number of quantization levels is usually a power of 2, i.

The signal may be amplified or attenuated before going into the ADC, so that digital signaling methods binary to text maximum and minimum voltage levels give the best compromise between resolution of the signal levels and minimization of clipping. Encoding is the digital signaling methods binary to text of converting the quantized signals into a digital representation.

This encoding is performed by giving each quantization level a unique label. For instance, if four bits are used, the lowest level may be in binaryand the next highest leveletc.

An Digital to Analog converter DAC takes a digital signal and converts it, through a mathematical function, into an analog signal. Again, the DAC may be implemented in a number of ways, but conceptually it contains two steps. In fact along with the counters we are using digital to analog convertor while converting analog signal to digital signals also. Here we can use counter along with the shift register to store the digital data. From Digital signaling methods binary to text, open books for an open world.
